Normalize the source
Bring physical, electrical, and documentary evidence into one inspectable neutral model.
THE NEUTRAL WIRE HARNESS PLATFORM
Wire harness software for every engineering workflow.
Import. Create. Edit. Compare. Repair. Validate. Export.
Stop rebuilding wire harnesses. Work with existing data instead, from legacy files and engineering drawings through customer-required delivery formats.
Free Community edition · Windows and Linux · Offline-capable
Version 1.2.0 · Desktop software · No mandatory cloud dependency
REAL PRODUCT. REVIEWABLE RESULTS.
Review imported and AI-assisted changes before accepting them.

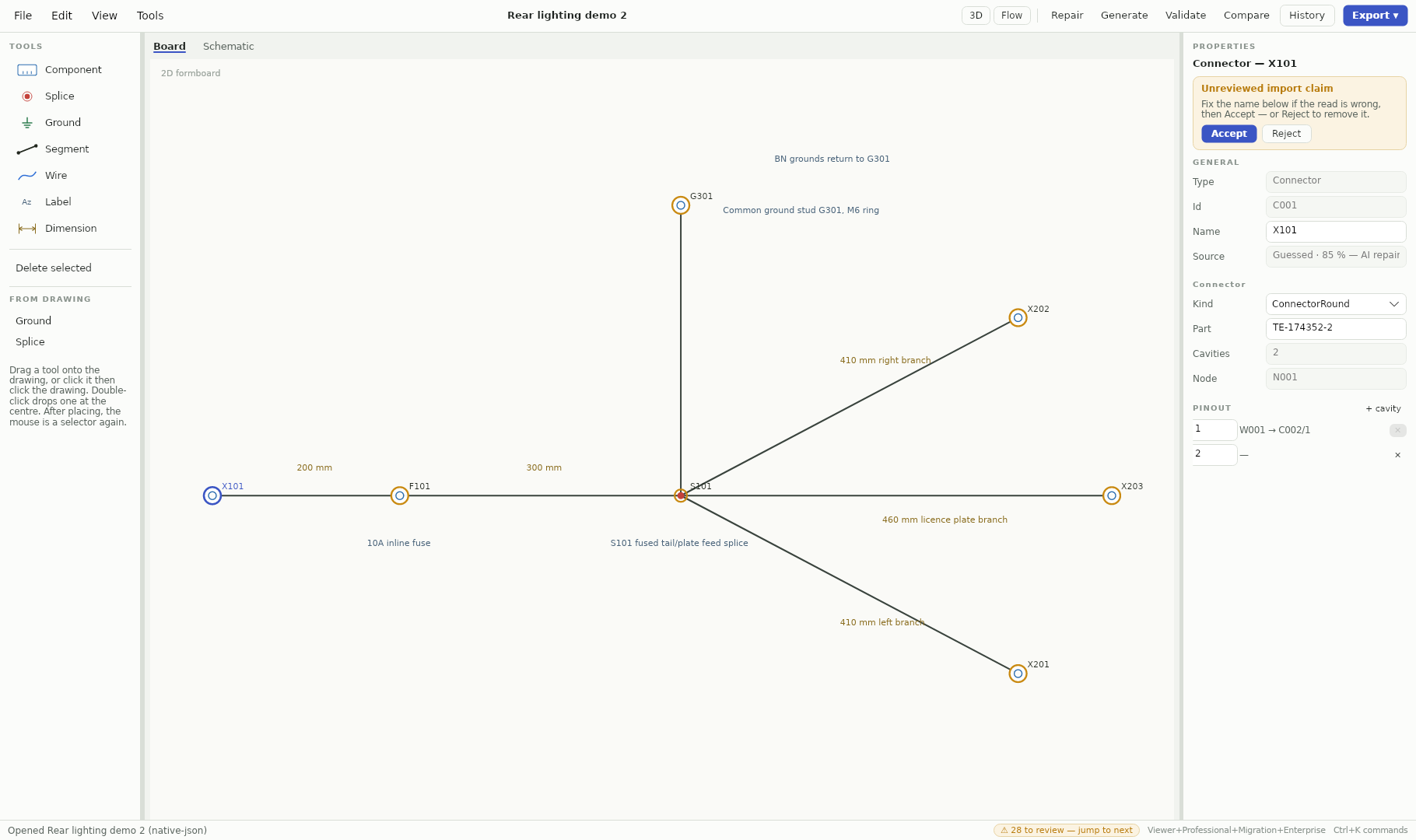

Harness Studio keeps uncertain or generated data visible. Inspect the harness, source, and confidence, then accept, correct, or reject each claim in the workbench.
See the complete workflow- Evidence-preserving imports
- Reviewable AI changes
- Neutral data model
THE WHOLE WORKFLOW
Why engineers switch.
- Open legacy projects
- Repair broken imports
- Compare revisions in seconds
- Generate harnesses with AI
- Edit without vendor lock-in
- Export to customer-required formats
HARNESS STUDIO 1.0
One application. Entitlements follow the license.
Download the same self-contained desktop build for Community, Professional, or Enterprise. It opens in Community mode; install a signed offline license to unlock the edition your organization purchased.
Release details and checksumsTHE EXPENSIVE PART IS THE HANDOFF
Work with existing harness data instead.
Harness data moves through CAD, drawings, wirelists, supplier tools, validation, and manufacturing release. Every translation can cost engineering time and lose intent.
Expose uncertainty
Keep missing inputs, inferred content, confidence, readiness findings, and export limitations visible.
Deliver with evidence
Release the harness with validation results, rule-pack provenance, waivers, and an export contract.
4-12 hrstypically recovered in a normal harness revision cycle
Multiple weekspotentially recovered when 3DXML replaces manual reconstruction and reconciliation
One modelfor authoring, review, validation, revision, and interchange
See the DRE savings breakdown
FROM SOURCE TO RELEASE
From source data to customer-ready output.
- 01
Import
Open 3DXML, PDF, wirelists, KBL, VEC, X2ML, HX2ML, and native projects.
- 02
Create and edit
Author a new harness or change connectors, wires, segments, routing, fixings, and protections directly.
- 03
Compare

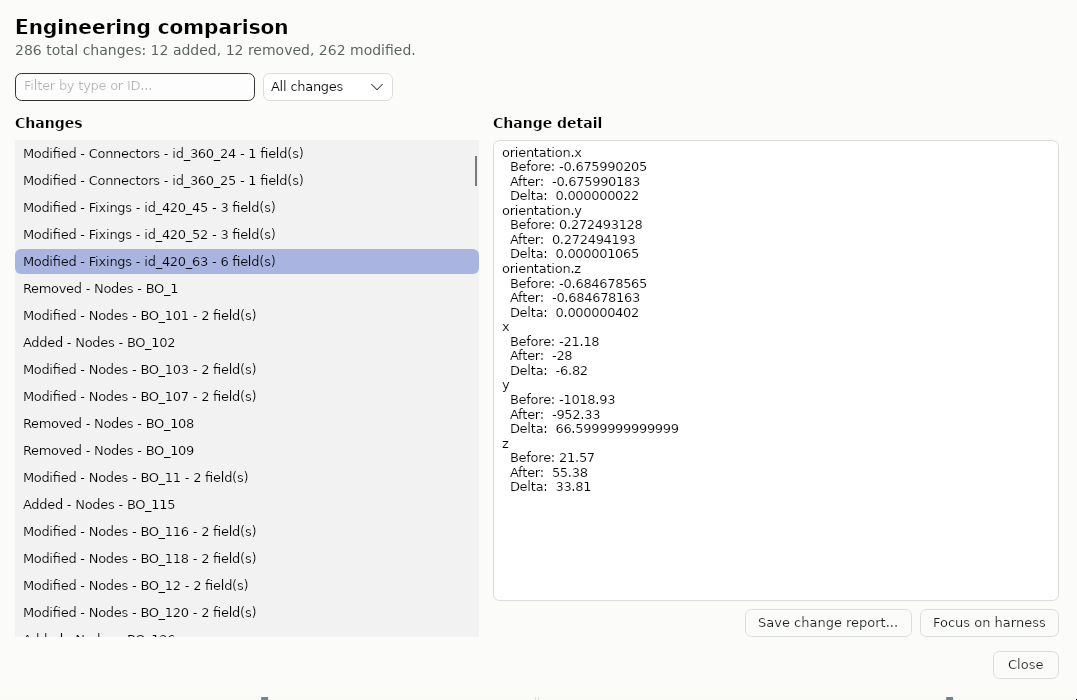

Diff complete revisions in synchronized side-by-side or overlay views with field-level evidence.
- 04
Repair
Fix findings manually or ask configured AI to explain, propose, and apply reviewable changes.
- 05
Validate
Stack customer and supplier DRC packs, manage waivers, and record reproducible results.
- 06
Export
Translate into customer-required formats with readiness evidence and an explicit fidelity statement.
ENGINEERING DEPTH
A workbench, translator, reviewer, and AI engineering assistant.
Harness Studio keeps the relationships that make harness data useful while giving engineers one place to create, recover, understand, change, and deliver it.
Create and repair
- Create complete harnesses from scratch in the neutral model
- Edit connectors, wires, segments, routing, fixings, protections, terminals, and seals natively
- Use AI generation and repair through explicit, reviewable harness mutations
Compare and understand
- Diff harness revisions in synchronized side-by-side and overlay views
- Review every changed value, physical location, accepted change, and reversion
- Ask configured AI chat to inspect the loaded harness, explain findings, and propose repairs
Recover and translate
- Reconstruct harnesses from vector PDFs with evidence and optional OCR workflows
- Recover 3DXML and legacy interchange data without hiding missing or inferred content
- Translate between KBL, VEC, X2ML, HX2ML, native JSON, CSV, SVG, and downstream workflows
WIRE HARNESS ENGINEERING RESOURCES
Start with the workflow that is costing you time.
Practical guides for recovering, translating, comparing, and validating harness data without hiding the limits of the source.
3DXML
Explore all wire harness engineering resources
Recover routed harness data from 3DXML
Understand what a useful import preserves, what still needs a wirelist, and how readiness evidence prevents false confidence.
Read the import guide → KBL + VECTranslate without flattening engineering intent
Map physical harness data between standards while making dialect differences, unsupported semantics, and validation explicit.
Read the conversion guide → LEGACY PDFTurn drawings into reviewable harness data
Use vector evidence, tables, geometry, and OCR as inputs to a controlled reconstruction workflow—not a black-box conversion.
Read the reconstruction guide → CHANGE REVIEWCompare revisions in physical context
Move beyond file diffs with synchronized geometry, field-level deltas, validation evidence, and an auditable review record.
Read the comparison guide →ENGINEERING REVIEW, NOT JUST CONVERSION
See every revision change in its physical context.

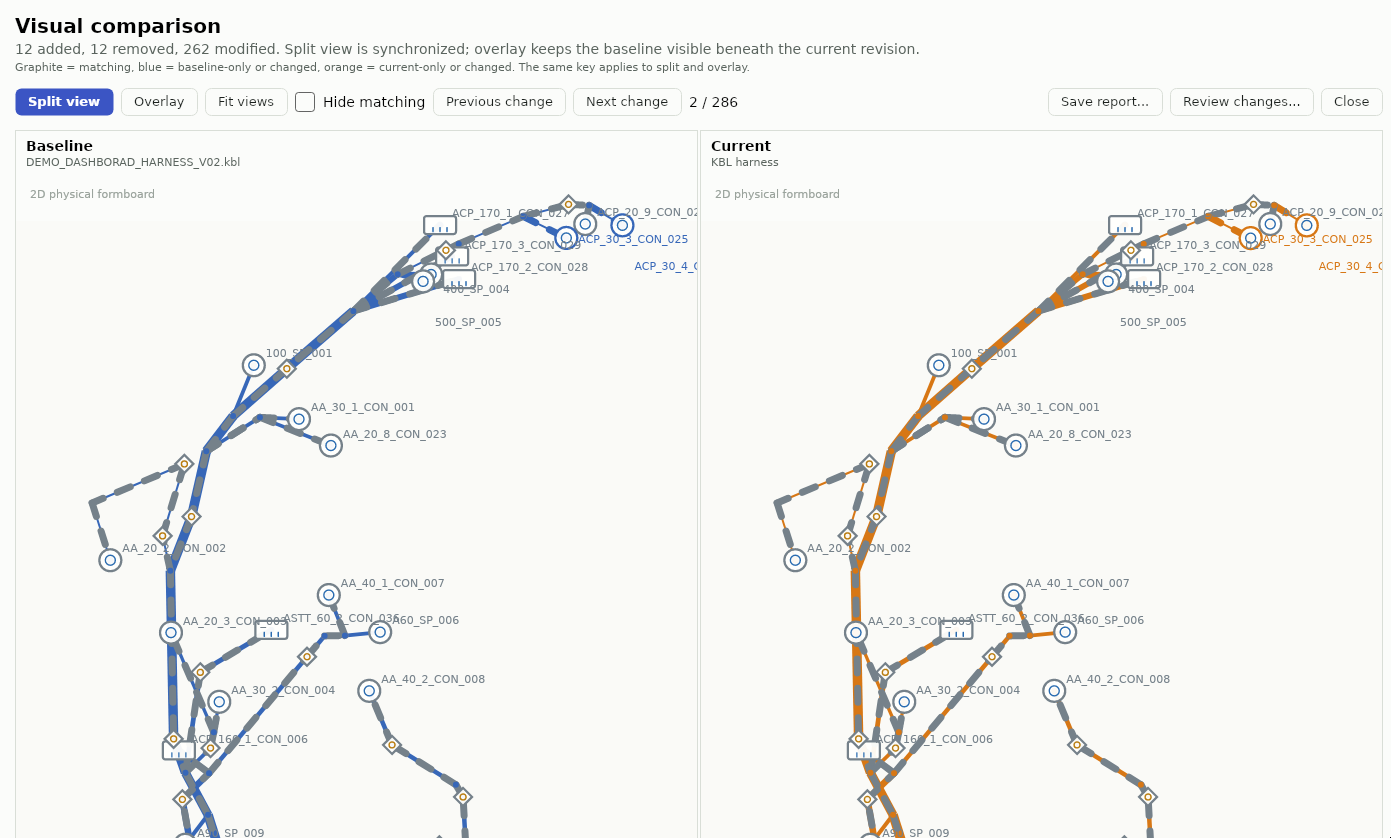

Compare a baseline with the current harness in synchronized split or overlay views. Matching geometry stays neutral; changes are traceable to the source revision and carried into an exportable engineering report.
WORK WITH THE STACK YOU HAVE
Use Harness Studio before, beside, or between established tools.
It is designed to normalize and repair harness data before downstream verification, including Capital XC-oriented H2XML/HX2ML bridge workflows.
You can adopt the neutral workbench without requiring every program, supplier, or customer to replace its current release system.
STRAIGHTFORWARD EDITIONS
Start where the engineering value begins.
Annual offline workstation licensing. Professional covers one workstation; Enterprise starts with an organization pool of five activations.
COMMUNITY
Community
$0
Build and exchange neutral harness designs.
Perfect for evaluating Harness Studio, creating neutral harness models, and collaborating with suppliers using a common format.
- Import supported structured harness formats
- Create, edit, and review neutral harnesses
- Save and share Harness Studio projects
- Community support
MOST TEAMS START HERE
PROFESSIONAL
Professional
$3,999
USD / workstation / year
Everything you need for production engineering.
Designed for engineers building and validating harnesses for manufacturing and downstream design systems.
- Everything in Community
- Export to downstream engineering systems
- Design rule checking and validation
- Revision comparison with field-level and physical-context change evidence
- AI inspection, generation, and reviewable harness repair
- Projects, version history, and support bundles
ENTERPRISE
Enterprise
$8,000
USD / year · 5 workstation activations
Recover, modernize, and scale legacy harness programs.
Built for organizations with decades of engineering data, supplier documentation, and large migration projects.
- Everything in Professional
- Recover harnesses directly from PDF documentation
- Reconstruct engineering data from 3DXML models
- Evidence-based reconstruction review
- Wirelist reconciliation and import qualification
- High-volume processing and enterprise onboarding
- Additional 5-activation packs: $4,000/year
BUYER QUESTIONS
What teams usually ask first.
What is wire harness engineering software?
Wire harness engineering software represents connectors, cavities, terminals, wires, splices, routed segments, protections, fixings, configurations, and their relationships as structured data. Harness Studio adds import recovery, revision comparison, validation, repair, and format translation around that model.
Does Harness Studio replace Capital XC?
It can author, review, validate, revise, and export neutral harness data. Most teams will initially use it beside Capital XC and export H2XML/HX2ML for established downstream verification and variant workflows.
Can we evaluate it with our own harness?
Yes. A useful evaluation starts with a representative wirelist, 3DXML, PDF, or interchange file so your team can judge preserved content, readiness findings, repair effort, and export fidelity.
Does it require cloud access?
No mandatory cloud service is required for the desktop engineering workflow or signed license verification. Sensitive OEM harness data can remain in your controlled environment.
What makes the import trustworthy?
Imports retain provenance and produce acceptance/readiness evidence showing what was preserved, inferred, missing, or requires downstream verification. Unknown data is not silently presented as authoritative.
PROVE IT ON REAL DATA
Bring us the harness that is costing your team time.
We will evaluate the source, show what survives the import, and make the remaining engineering work visible.
REQUEST EVALUATION
Show us the harness problem you want to prove on real data.
Send a short note about your source data, target workflow, or licensing question. We can start with a representative wirelist, 3DXML, PDF, KBL, VEC, X2ML, HX2ML, CSV, or XLSX sample.
